Anhydrous ethanol decarbonization and filtration system of juporcelain Technology Co., Ltd

2018-09-181405

Anhydrous ethanol decarbonization and filtration system of juporcelain Technology Co., Ltd

Equipment Description:Backwash filter, candle filter, full-automatic candle filter。

Equipment parameters:MDEL：U-FC-J-600
                   FLUID：Absolute ethanol
                   SOLID PART：Carbon black+Alumina powder
                   FLOW RATE：300L/hr
                   SOLID PART C0NTENT：22.5kg/batch
                   OPERATING TEMPERATURE：Normal atmospheric temperature
                   DESIGN TEMPERATURE：80℃
                   OPERATING PRESSURE：0.4Mpa
                   DESIGN PRESSURE：0.5a
                   SIZE OF FILTRATI0N：1um
                   IEAD&SEL：304
                   INTERNALS/ELEMENT：304
                   STAY-B0LT:304

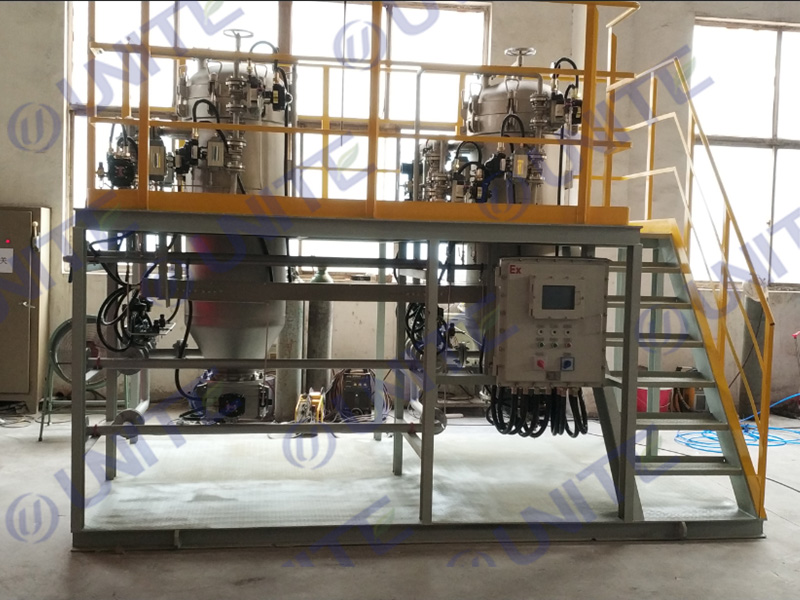

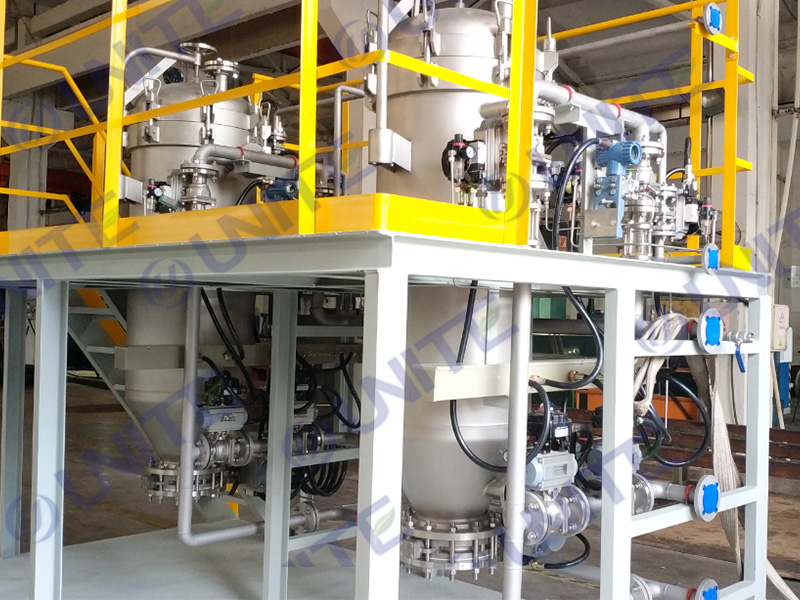

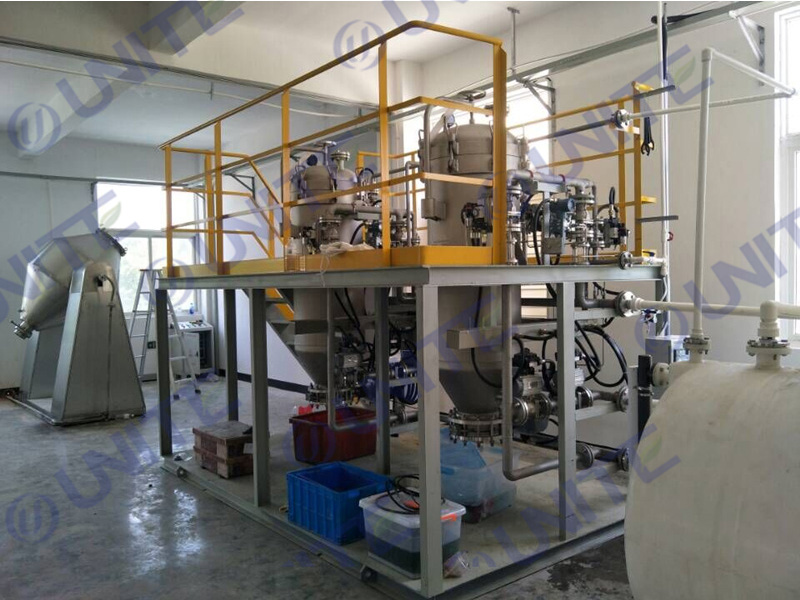

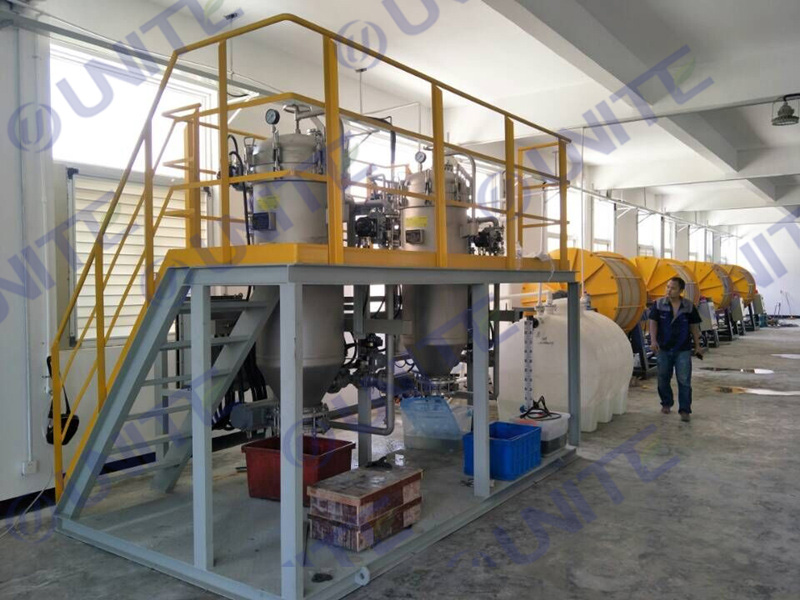

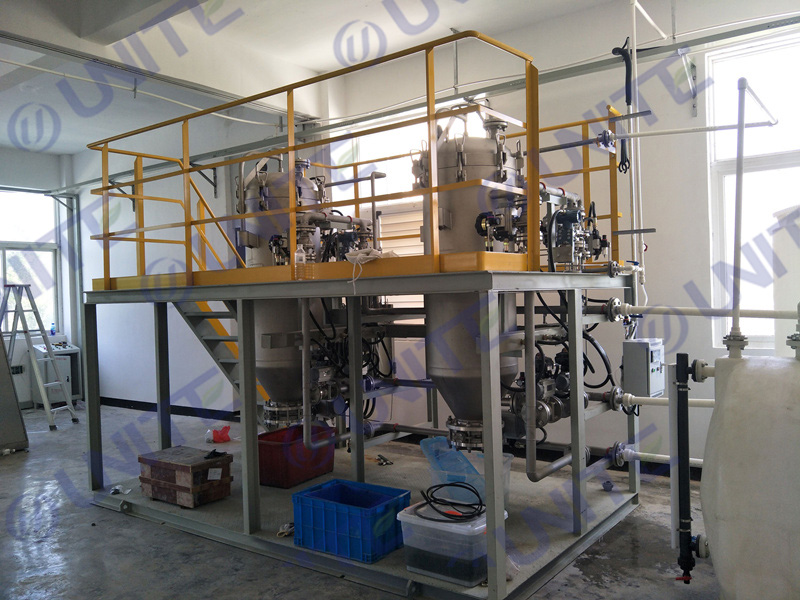

Picture of site commissioning

Equipment outline picture
